THE SAIL PROTECTOR...THAT ACTUALLY STAYS IN PLACE

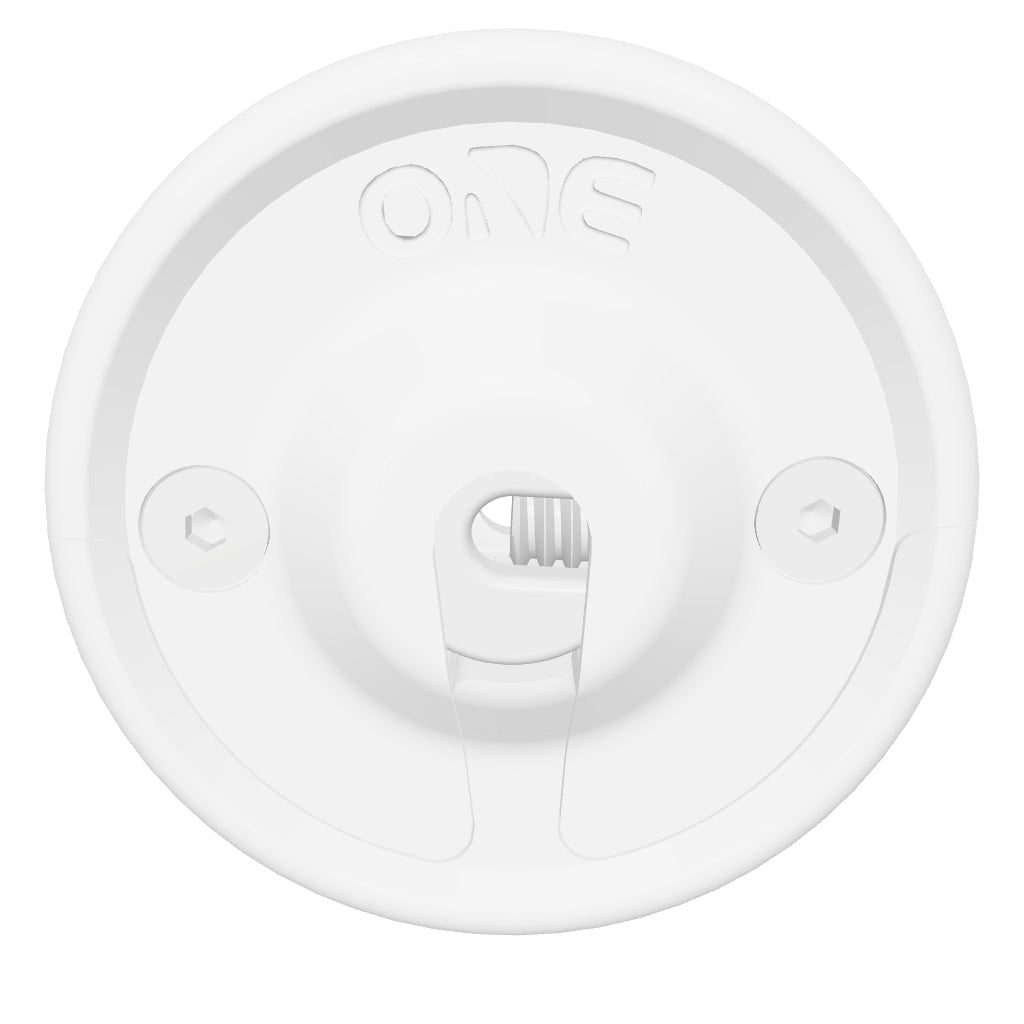

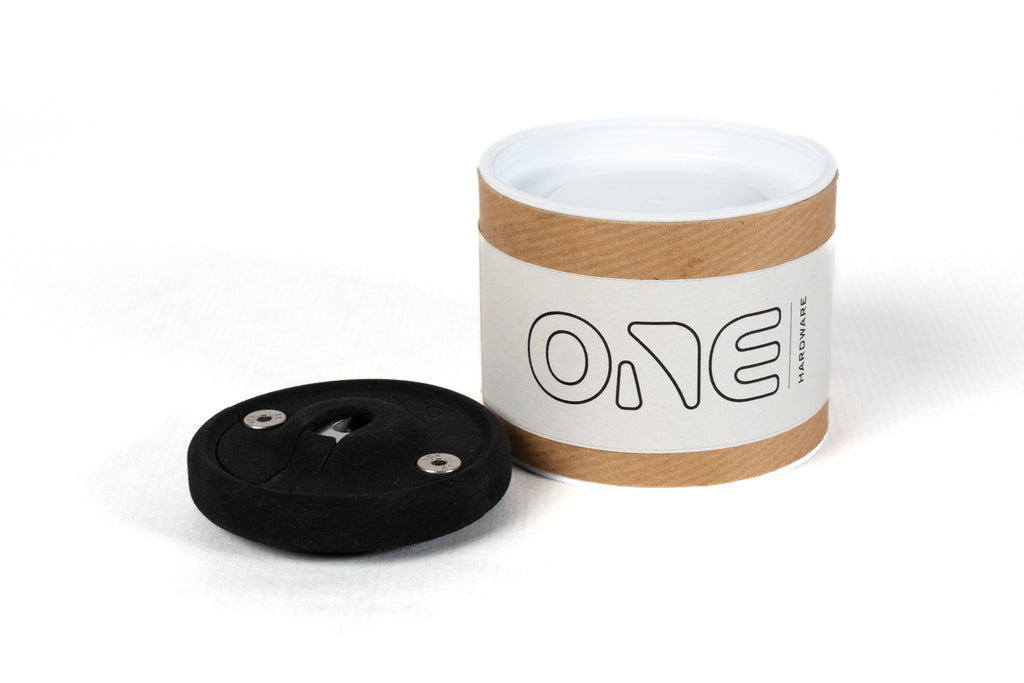

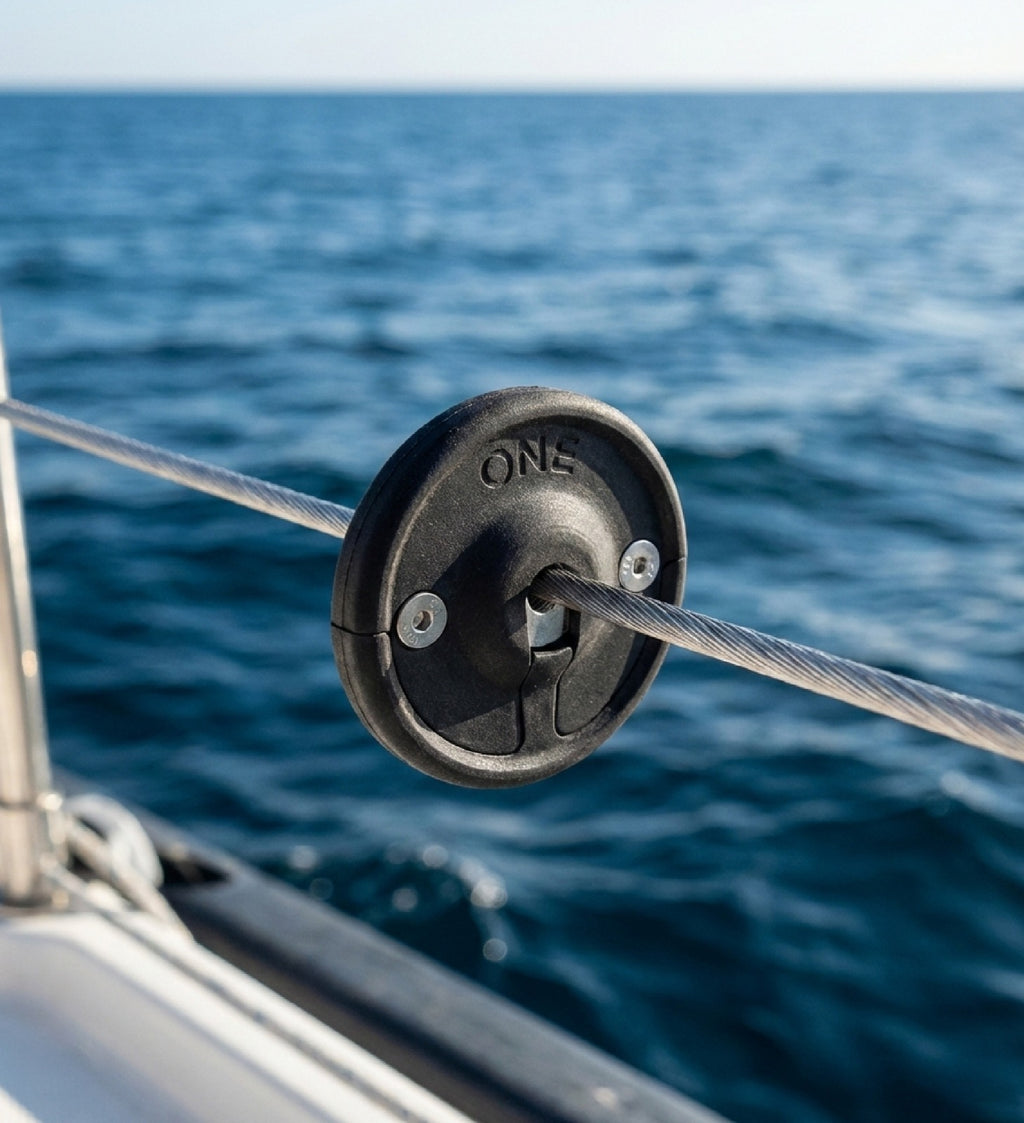

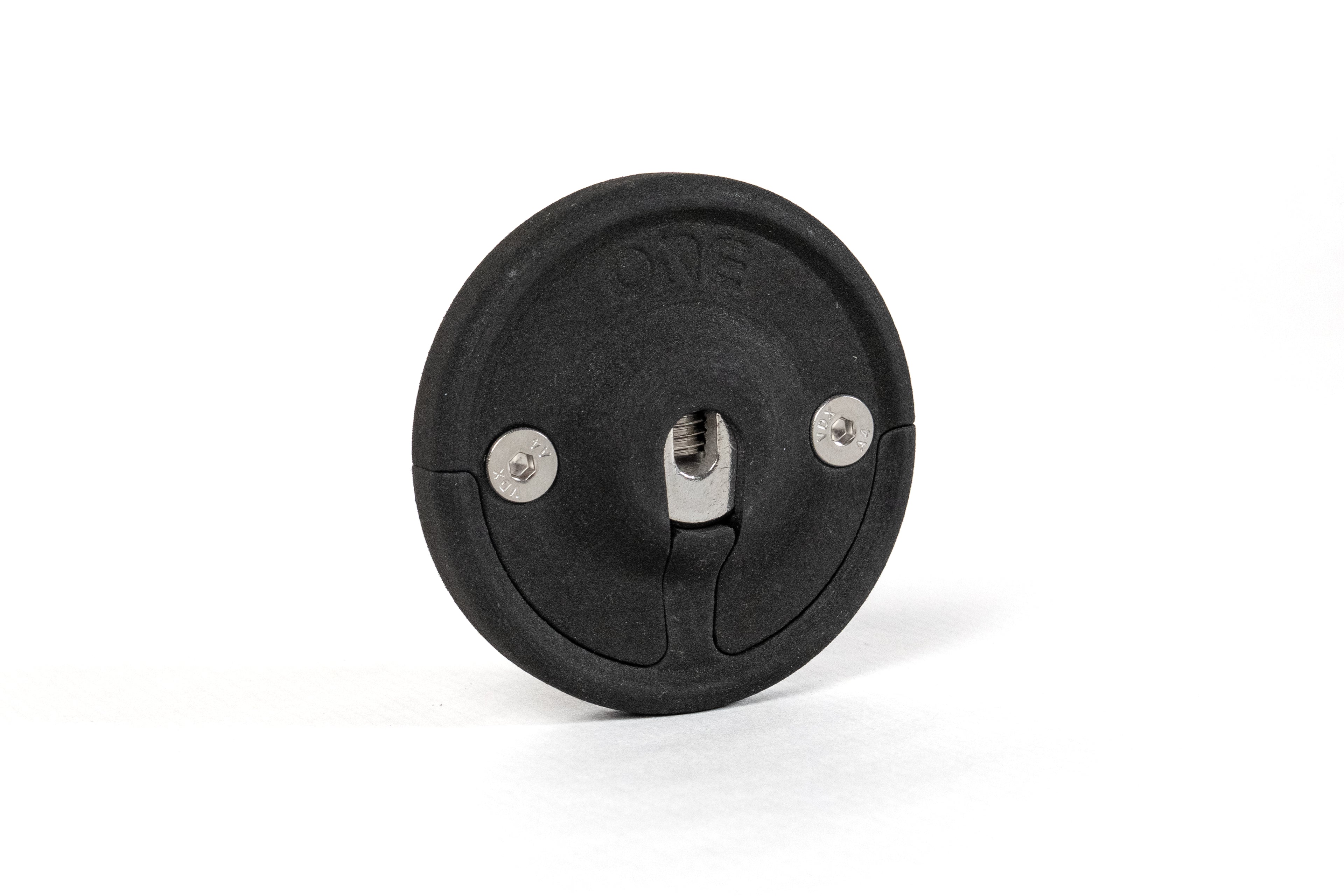

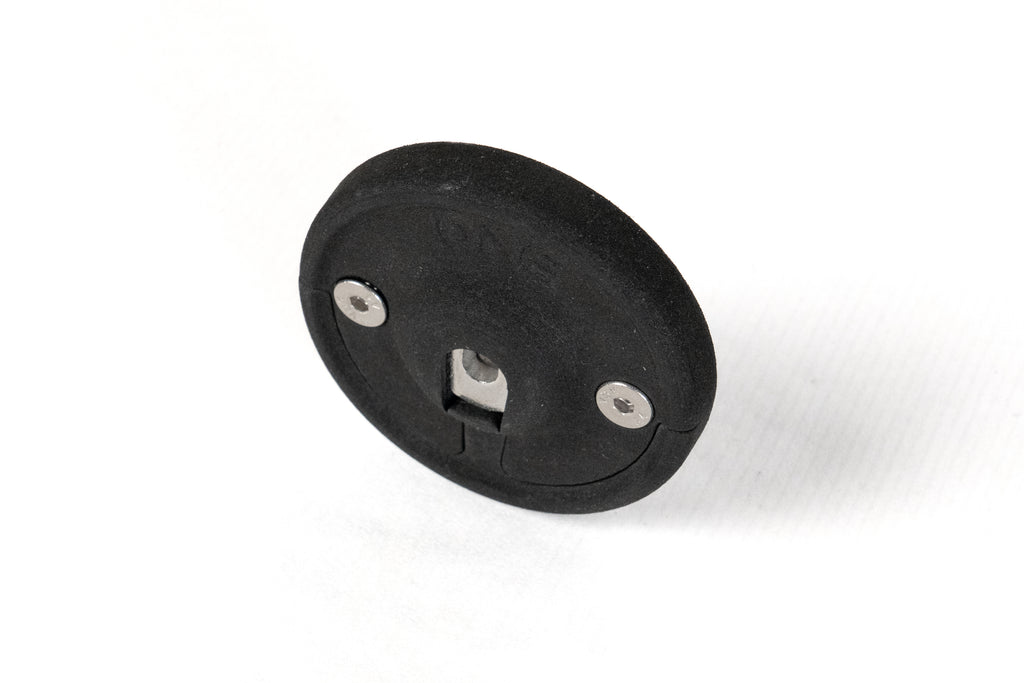

Rotating Sail Protector for Rigging & Lifelines

Sudden changes in sail position — especially when the sail moves beyond the deck limits — can apply constant or impact forces on safety lines and rigging. Over time, this causes abrasion, wear, and even tearing of the sail.

Most existing solutions fail because they aren’t fixed to the cable, rotate poorly, or are made with low‑quality materials.

A Reliable, Fixed, Rotating Protection System

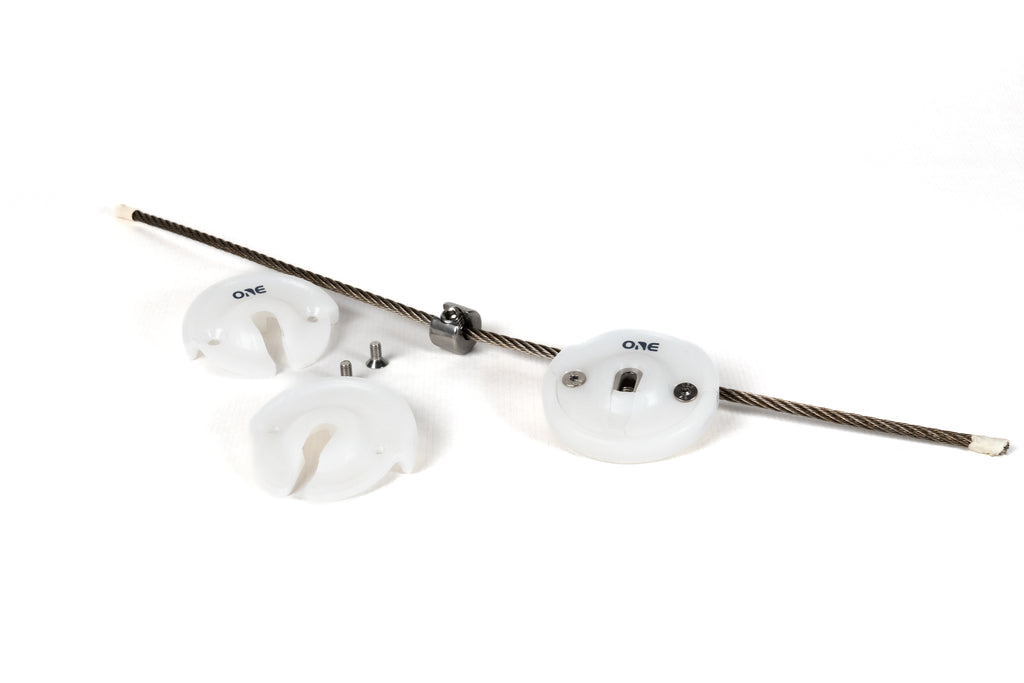

• Hidden central fixation + rotation axis for smooth, controlled movement

• Designed for recreational and competitive yachts, including superyachts

• Multiple models available for cable diameters from 4 mm to 6 mm

• Suitable for all forward sails: jibs, spinnakers, gennakers, staysails, stay/backstay sails

TECHNICAL INFORMATION

Specifications

• 📏 Cable Diameter: 4–6 mm

• ⚖️ Unit Weight: 65 g per piece

• 🏋️ Minimum Working Load: 200 kg axial compression

• 🛡️ Corrosion Resistance: Total

• 🔧 Manufacturing: 3D printing (Fused Deposition Modelling – FDM)

Materials

• 🧱 Material: UV‑resistant polymer (2‑piece shell)

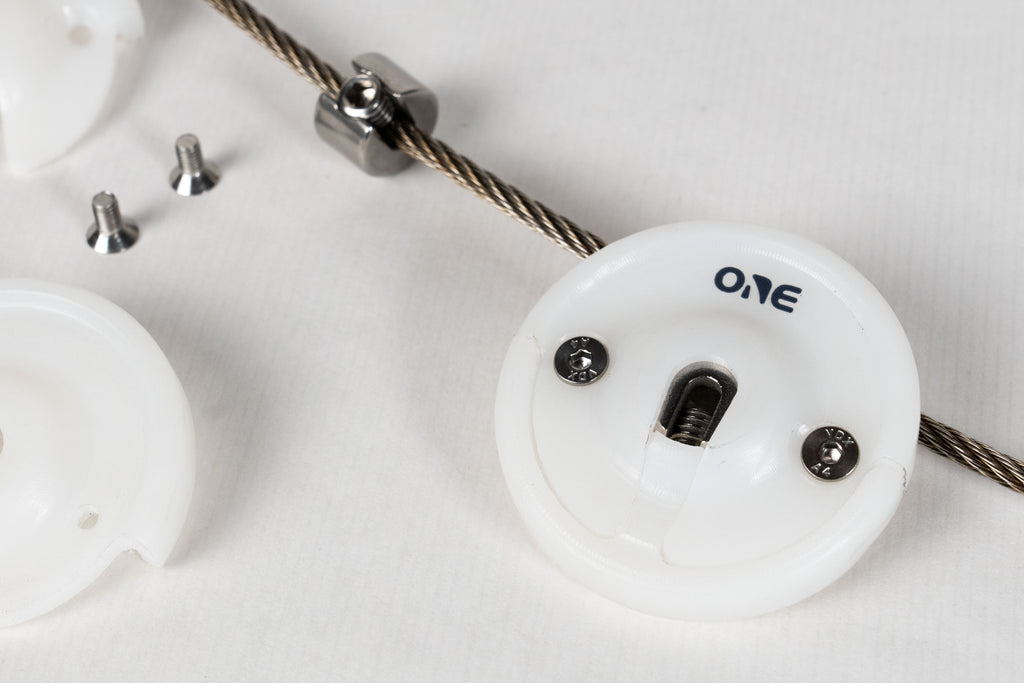

• 🔩 Fixation: A4 stainless steel central piece

• 🪛 Hardware: Countersunk M5 screws in A4 stainless steel

• 🌞 UV Resistance: High
